Navigating to a Vehicle Zone in 3D Mode
Navigation Vehicle

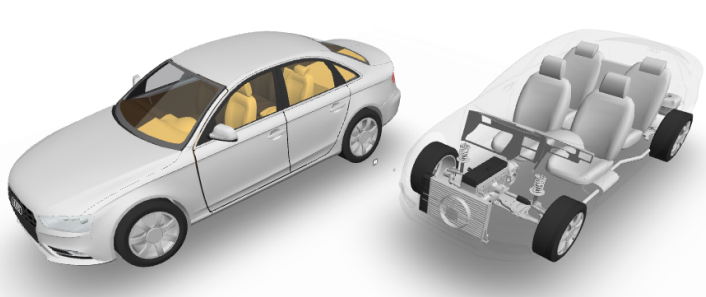

You can jump directly to a vehicle zone by clicking a zone from the navigation vehicle. Exterior vehicle zones are accessible by clicking a zone in exterior shell graphic, shown left. Internal vehicle zones are accessible by clicking a zone in the interior parts graphic, shown right. When you click a vehicle zone, the parts belonging to that zone display in the in the Vehicle Drawings Panel. In addition, the system updates the Model Options and More Parts tab with the correct model options and additional parts for that zone.
- Click the tab.
- Click a zone from the external or internal parts graphic.
Pictogram
Pictograms provide access to special zones, such as paint, wheel design, accessories, non-standard parts, service and maintenance jobs and parts that might be affected by a particular type of damage such as hail and stone chips. Simply select a pictogram for the desired zone and begin damage capturing. You may also find pictograms within zones where applicable.
